Introduction
From factory maintenance and construction drilling to agricultural irrigation and outdoor inflation, mobile air compressors have become versatile powerhouses across industries. Compared to stationary units, their portability overcomes operational constraints, delivering on-site power without complex piping systems to significantly boost efficiency. This makes mobile air compressors the core solution for temporary operations and mobile scenarios.
Highly mobile wheeled or trailer designs facilitate rapid relocation. Exceptional adaptability ensures stable operation in power-free or high-dust environments. Swift deployment allows immediate use upon unboxing and commissioning, eliminating fixed installation costs.
The current market is advancing towards lightweight, mobile air compressors, and intelligent upgrades, with concurrently heightened environmental standards. This article focuses on core dimensions such as technical specifications and drive methods, providing precise selection logic to assist users in matching the optimal portable mobile air compressor model.
1. Understanding Key Technical Parameters to Avoid Selection Pitfalls
Core parameters such as airflow, pressure, and air tank capacity directly determine whether a mobile air compressor can meet tool requirements. Blindly pursuing higher specifications risks unnecessary expenditure, while insufficient parameters lead to tool failure. Precise understanding of these metrics is fundamental to selection.
1.1 Airflow (CFM/m³/min) and Pressure (PSI/bar): Core Power Indicators
Airflow (measured in cubic feet per minute (CFM) or cubic metres per minute (m³/min)) represents the volume of air supplied per unit time, while pressure (measured in pounds per square inch (PSI) or bar) indicates the intensity of gas output. Together, these determine the types and quantities of tools a mobile air compressor can drive.
Heavy-duty tools (rock drills, breakers) require over 25 CFM and 150–300 PSI, typically paired with diesel models. When operating multiple tools simultaneously, total air consumption should be calculated as “sum of tool air volumes × 1.2 (redundancy factor)”.
Common Pneumatic Tool Air Volume and Pressure Requirements
| Tool Type | Recommended Air Flow (CFM) | Recommended Pressure (PSI/bar) | Suitable Applications |
|---|---|---|---|
| Spray Gun (Small) | 10–18 | 90–150 / 6.2–10.3 | Wall painting, small equipment spraying |
| Medium Sandblaster | 18–30 | 100–180 / 6.9–12.4 | Steel structure rust removal, surface treatment |
| Pneumatic Breaker | 30–60 | 150–250 / 10.3–17.2 | Building demolition, concrete breaking |
| Rock Drill | 60+ | 200–300 / 13.8–20.7 | Mining operations, tunnel construction |
1.2 Air Tank Capacity (Tank Size): Determines Continuous Operation Capability
Air tanks stabilise pressure and minimise start-stop cycles. Capacity tiers for portable mobile air compressors:
- Small capacity (5–20 gallons / 20–75L): Suited for DIY and domestic maintenance, accommodating intermittent use. Ideal for pneumatic nailers, air pumps, and short-duration tasks.
- Medium capacity (20–60 gallons / 75–225L): Mainstream choice for mobile operations, such as construction sites and light industrial production. Supports 2–3 hours of continuous operation for tools like spray guns and medium sandblasters.
- Large capacity (>60 gallons / 225L): Designed for industrial heavy-duty applications; trailer-mounted units can power rock drills and large breakers over prolonged periods.
Selection logic prioritises operational duration:
- Intermittent tasks under 30 minutes → opt for small capacity
- Continuous operation exceeding 1 hour → require medium-to-large capacity
Avoid frequent start-stops to maintain mobile air compressor efficiency.
1.3 Duty Cycle and Operating Time: Equipment Durability Metrics
Duty cycle (percentage of continuous operation within 1 hour) indicates durability:
- Continuous-duty models (≥75% duty cycle): Typically rotary screw compressors, suitable for 24-hour operation.
- Intermittent models (≤50% duty cycle): Usually piston compressors, suitable for short-term or non-continuous tasks.
Temperature rise protection systems automatically shut down units when temperatures exceed 100–120°C, crucial for high-temperature environments.
1.4 Compressor Technology: Rotary Screw vs Piston, Oil-Free vs Oil-Lubricated
Mobile air compressor technology comparison
| Technology | Core Advantages | Disadvantages | Suitable Applications |
|---|---|---|---|
| Rotary Screw | Stable operation, low noise, high duty cycle, long service life (8,000–15,000 hours) | High initial investment, complex structure | Industrial production, heavy-duty applications, continuous operations |
| Reciprocating Piston | Simple structure, low cost, easy maintenance | High noise, low duty cycle, shorter service life (3,000–5,000 hours) | DIY tasks, minor repairs, intermittent operations |
| Oil-Free | Oil-free air output, suitable for high-precision tasks | Higher cost, accelerated wear | Spray painting, food processing, medical equipment, electronics |
| Oil-Lubricated | Minimal wear, long service life, low maintenance | Air contains trace oil, requires regular changes | Construction demolition, mining, general maintenance |
2. Power Source and Drive Method: Key Factors for Matching Operational Environments
The drive method determines suitable application scenarios. Selection must consider power supply and environmental requirements.
2.1 Electric vs Diesel/Petrol: Core Drive Comparison
- Electric Models: Noise ≤75 dB, zero emissions, low operating costs. Suitable for indoor and urban use. Power 1–20 kW, airflow 3–30 CFM. Requires stable mains power (220V/380V).
- Diesel/Petrol Models: No external power required, high mobility. Diesel units offer 10–200 kW, airflow >100 CFM, ideal for outdoor heavy-duty applications. Noise ≥90 dB, higher emissions and operating costs.
Tip: For outdoor, off-grid sites, choose a diesel mobile air compressor; for indoor or urban environments, an electric or low-noise diesel variant is recommended.
2.2 Environmental Compliance and Emissions Requirements
Ensure compliance with local regulations (e.g., EU Stage V diesel standards). Urban operations require low-noise, low-emission units; industrial parks may allow China IV/V diesel standards. High-efficiency models may qualify for subsidies, improving long-term cost-effectiveness.
3. Mobility and Portability: Design Considerations for Operational Scenarios
3.1 Mobility Design
Mobile air compressors are designed as follows:

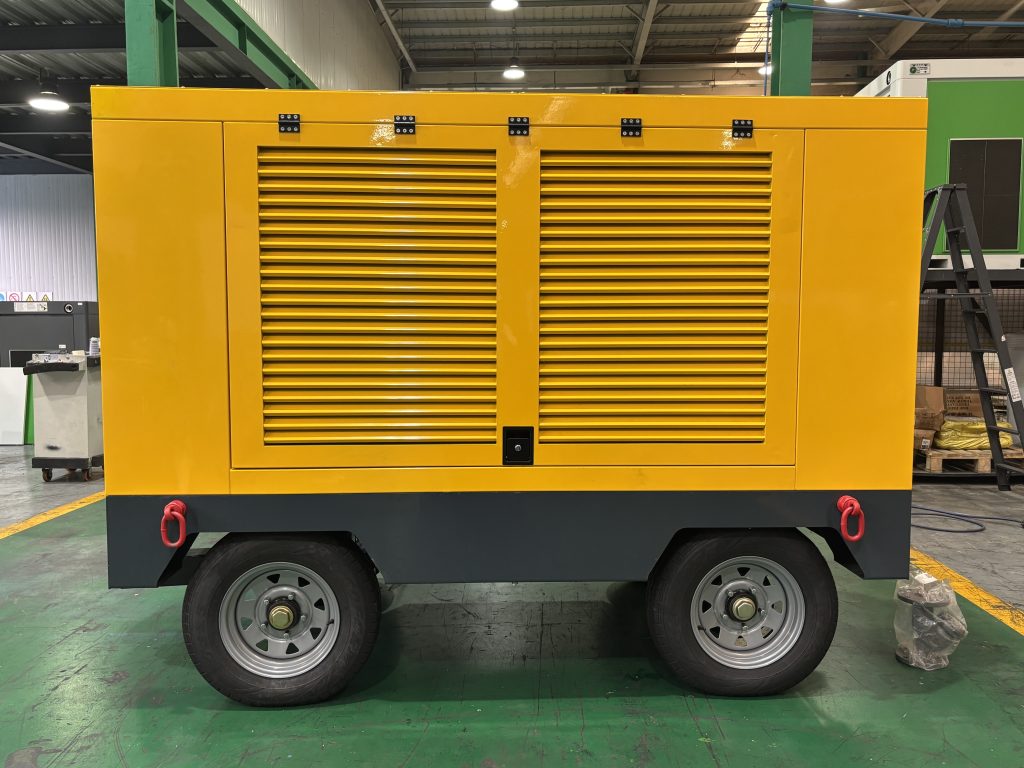

Wheeled: 20–60 gallons, suitable for construction site teams
Trailer-mounted/skid-mounted: >60 gallons, for cross-regional operations such as mining
Skid-mounted: Requires crane relocation, suited for long-term fixed deployments
3.2 Chassis Structure
High-dust environments need fully enclosed casings and steel frames. Maintenance-friendly features include side-access doors, external control panels, and quick-drain valves.
3.3 Transport and Storage
- Compact models fit in car boots
- Medium units may require forklifts
- Trailer-mounted units must comply with road dimensions
Outdoor storage requires anti-corrosion coating and rain cover; indoor storage requires sufficient ventilation.
4. Air Quality and Aftertreatment: Meeting Specialized Application Requirements
4.1 Filtration and Drying
Filters and dryers ensure high-quality compressed air:
- Particle filters: 1–5 μm, maintenance tasks
- Oil mist filters: 0.01 μm, painting
- Activated carbon: Food/medical
- Refrigerated dryers: Dew point 1–10°C
- Desiccant dryers: Dew point ≤-40°C, electronics industry
4.2 Application-Specific Requirements
- Spray painting → Oil-free compressor + multi-stage filtration + dryer
- Food processing → Food-grade oil-free compressor, stainless steel filter
- Precision instruments → Ultra-pure, sterilized filters
- Humid outdoor environments → Dryer installation mandatory
5. Purchasing Process Overview + FAQ: Rapid Decision Tool
5.1 Purchasing Checklist
- Calculate total air volume (sum of tool requirements × 1.2)
- Determine power type: diesel for outdoor/off-grid, electric for indoor
- Select air receiver size based on operating duration
- Evaluate mobility: hand-carry, trolley, or trailer
- Assess costs: piston for short-term, screw for long-term
- Verify compliance: noise, emissions, certifications
5.2 FAQ
Q1: Is an oil-free compressor worth it?
A1: Essential for high-precision applications; oil-lubricated is better for general tasks.
Q2: How to reduce noise?
A2: Use an electric screw compressor with a silencer; keep it away from the work area.
Q3: How to avoid misleading specifications?
A3: Check CE/ISO certifications and select reputable brands.
Q4: How to protect outdoor storage?
A4: Rust-proof model + rain cover; start draining monthly.
Conclusion:
Selecting the Right Mobile Air Compressor Enhances Operational Efficiency. The principle of needs matching applies:
- Airflow and pressure → foundation
- Tank capacity and duty cycle → sustained capability
- Drive type → suits application
- Maintenance and after-sales → long-term costs
Outline the tools, solutions and usage frequency, then filter options according to this guide. For complex requirements, consult suppliers for bespoke solutions.
SEIZEAIR specialises in portable air compressors, offering lightweight, low-noise, durable screw models suitable for diverse applications. For assessments or technical documentation, contact official channels.
